PATH 11 · GRAVITY AS GEOMETRY

Relativity & Spacetime

Relativity explains that space and time are connected and can be measured differently by observers who move differently or experience different gravity. In Einstein’s picture, gravity is not simply an invisible pull: matter and energy bend space and time, and objects follow those curves.

10 CHAPTERSDEEP-DIVE GUIDEILLUSTRATED
10-PAGE FIELD GUIDE01020304050607080910

A LIGHTER FIELD GUIDE

One idea.
Then the next.

Start with the short explanation in each chapter. Open “Go a little deeper” only when you want more detail. The final line shows how the next chapter follows from the one you just read.

01CHAPTER

Light and electromagnetism challenged classical mechanics.

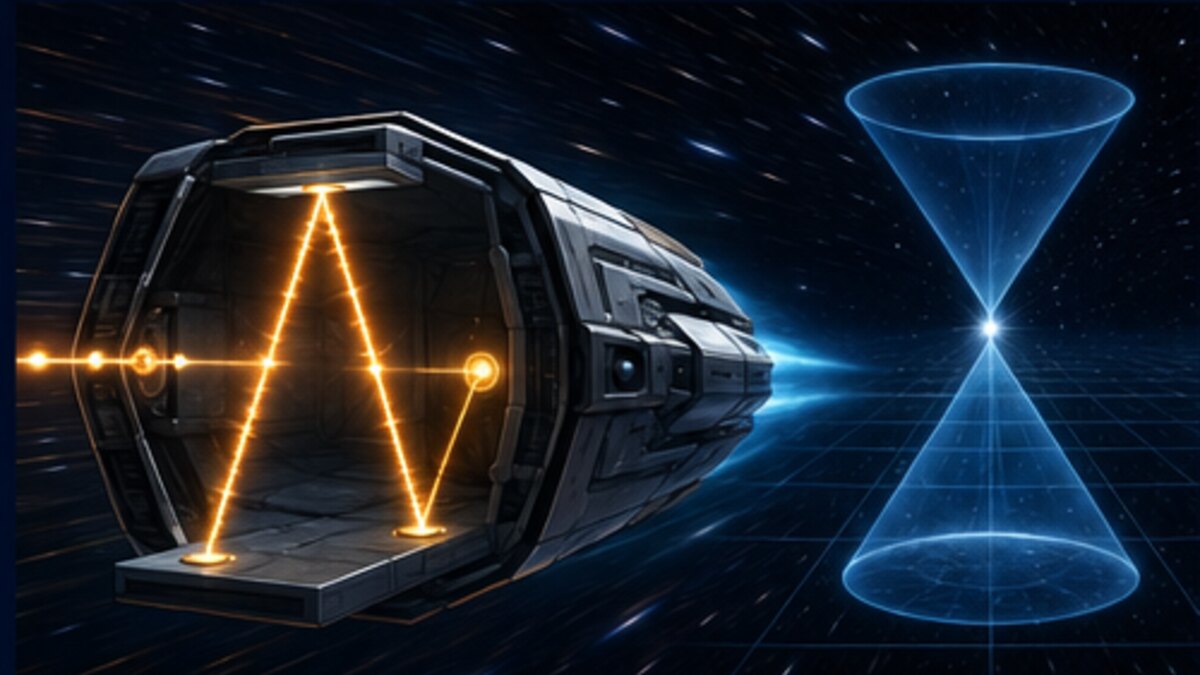

Why relativity was necessary

IN PLAIN LANGUAGE

Here is the big picture: Light and electromagnetism challenged classical mechanics. The main point to remember is this: Light speed is invariant.

See the fuller scientific explanation +

Maxwell’s equations predict a fixed speed for light, conflicting with ordinary velocity addition. Einstein treated the laws of physics and light speed as the same for all inertial observers.

The result was not a mechanical ether but a revision of space and time. Measurements of duration, distance, and simultaneity depend on motion while the the connected fabric of space and time interval remains invariant.

THE POINTS TO REMEMBER
Light speed is invariant
Simultaneity is frame-dependent
the connected fabric of space and time replaces separate absolutes

NEXT Now that this piece is in place, we can turn to Time dilation and length contraction.

Why relativity was necessary
Relativity preserves consistent physical law by changing how space and time are related.
02CHAPTER

Moving observers divide the connected fabric of space and time differently.

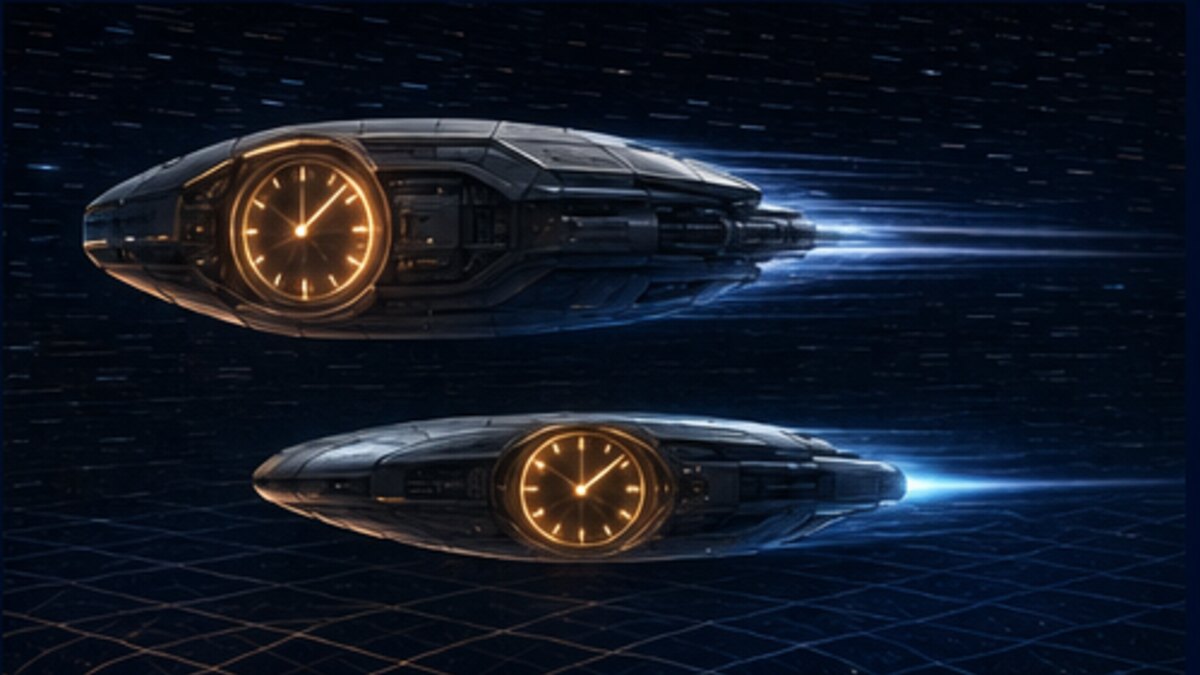

Time dilation and length contraction

IN PLAIN LANGUAGE

Here is the big picture: Moving observers divide the connected fabric of space and time differently. The main point to remember is this: Proper time belongs to a path through the connected fabric of space and time.

See the fuller scientific explanation +

A moving clock is measured to run slowly relative to a given inertial frame, and moving lengths contract along the direction of motion. Each effect follows from Lorentz transformations rather than a physical malfunction of clocks or rulers.

Muon survival, particle accelerators, precision clocks, and satellite navigation verify these effects. Apparent paradoxes dissolve when events and frames are carefully specified.

THE POINTS TO REMEMBER
Proper time belongs to a path through the connected fabric of space and time
Length requires simultaneous endpoint measurements
Experiments confirm relativistic factors

NEXT Now that this piece is in place, we can turn to Energy, momentum, and E=mc².

Time dilation and length contraction
Different motions produce different slices of one consistent the connected fabric of space and time geometry.
03CHAPTER

Mass is stored energy, not velocity-dependent substance.

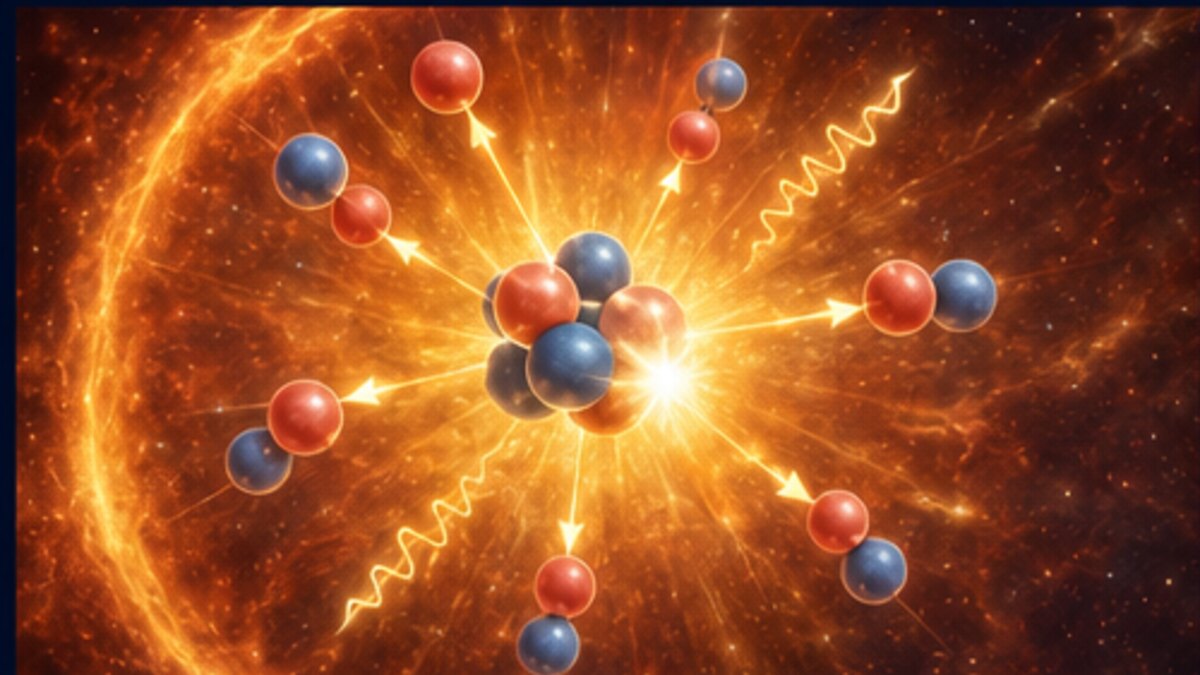

Energy, momentum, and E=mc²

IN PLAIN LANGUAGE

Here is the big picture: Mass is stored energy, not velocity-dependent substance. The main point to remember is this: Rest mass is invariant.

See the fuller scientific explanation +

Relativity unifies energy and momentum. Rest mass contributes energy mc², while a moving object has additional kinetic energy and momentum governed by the energy–momentum relation.

Nuclear fusion releases energy because the final bound system has slightly less mass than its ingredients. Massive objects cannot be accelerated through light speed because the required energy grows without bound.

THE POINTS TO REMEMBER
Rest mass is invariant
Binding energy changes system mass
Light speed is a causal limit for massive objects

NEXT Now that this piece is in place, we can turn to The equivalence principle.

Energy, momentum, and E=mc²
Stellar power is a practical demonstration of mass–energy equivalence.
04CHAPTER

Free fall reveals the path to gravity as geometry.

The equivalence principle

IN PLAIN LANGUAGE

Here is the big picture: Free fall reveals the path to gravity as geometry. The main point to remember is this: Free fall removes local gravity.

See the fuller scientific explanation +

Locally, a freely falling laboratory behaves like an inertial frame, while acceleration can mimic a gravitational field. This insight connects inertial and gravitational mass.

Gravity then becomes the curvature of the connected fabric of space and time rather than a force acting across a fixed background. Freely moving matter and light follow the straightest possible paths—geodesics—in curved geometry.

THE POINTS TO REMEMBER
Free fall removes local gravity
Acceleration and gravity are locally related
Geodesics replace gravitational force trajectories

NEXT Now that this piece is in place, we can turn to Einstein’s field equations.

The equivalence principle
The equivalence principle turns falling motion into a clue about the connected fabric of space and time itself.
05CHAPTER

Matter tells the connected fabric of space and time how to curve.

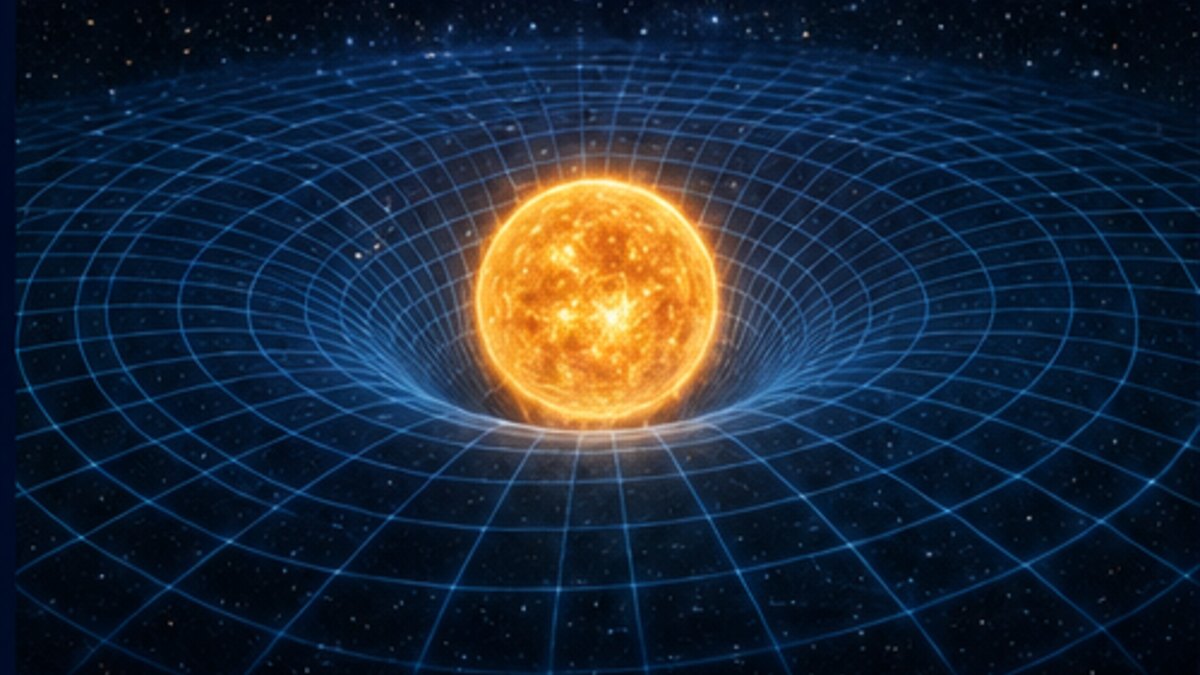

Einstein’s field equations

IN PLAIN LANGUAGE

Here is the big picture: Matter tells the connected fabric of space and time how to curve. The main point to remember is this: Energy–momentum sources curvature.

See the fuller scientific explanation +

General relativity relates the connected fabric of space and time curvature to the distribution and flow of energy and momentum. The equations are nonlinear, allowing geometry itself to carry energy and interact.

Different solutions describe planets, stars, expanding universes, gravitational waves, and black holes. Coordinates can create misleading appearances, so invariant physical statements are essential.

THE POINTS TO REMEMBER
Energy–momentum sources curvature
Geometry guides matter and light
Coordinates are labels, not direct observables

NEXT Now that this piece is in place, we can turn to Classical tests and modern navigation.

Einstein’s field equations
Curvature links local gravity with the global structure of the universe.
06CHAPTER

Relativity succeeds from Mercury to GPS.

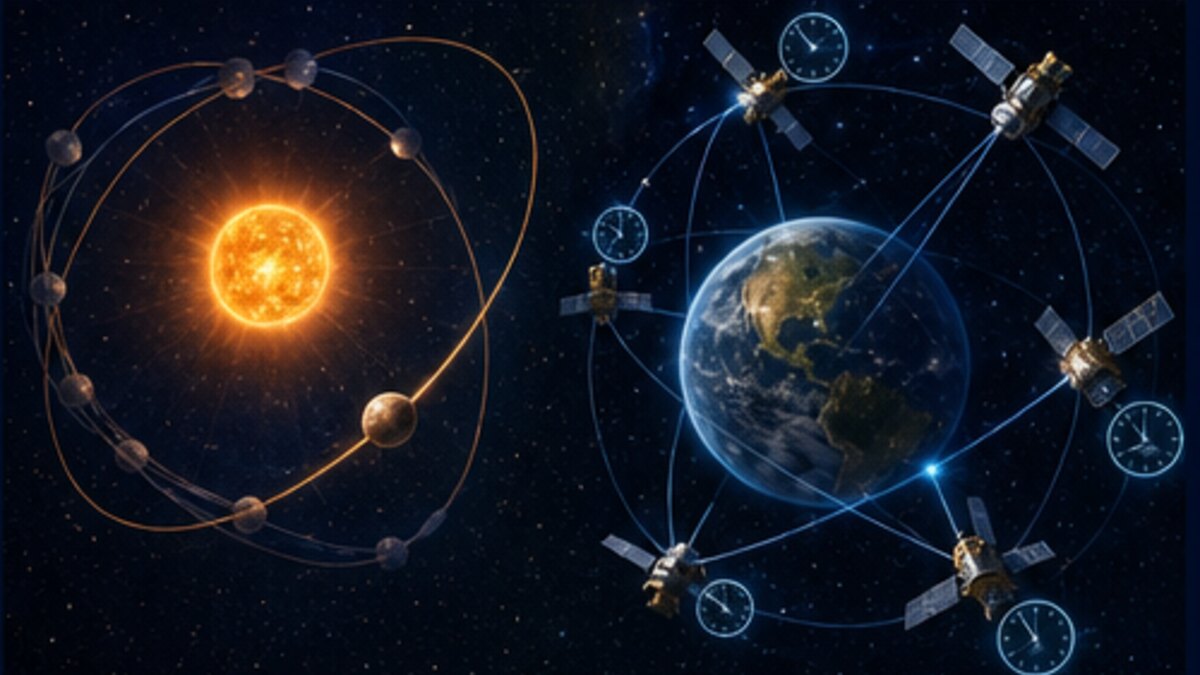

Classical tests and modern navigation

IN PLAIN LANGUAGE

Here is the big picture: Relativity succeeds from Mercury to GPS. The main point to remember is this: Mercury probes curved orbital geometry.

See the fuller scientific explanation +

General relativity explains Mercury’s extra perihelion precession, predicts the deflection of starlight, and produces gravitational a shift of light toward longer, redder wavelengths. Modern experiments test these effects with far greater precision than early observations.

GPS satellites require corrections for both orbital motion and weaker gravity at altitude. Without relativity, navigation errors would accumulate rapidly.

THE POINTS TO REMEMBER
Mercury probes curved orbital geometry
Light follows curved the connected fabric of space and time
GPS combines special and general relativistic corrections

NEXT Now that this piece is in place, we can turn to Gravitational lensing.

Classical tests and modern navigation
Relativity is operational technology as well as fundamental theory.
07CHAPTER

Mass turns the universe into a telescope.

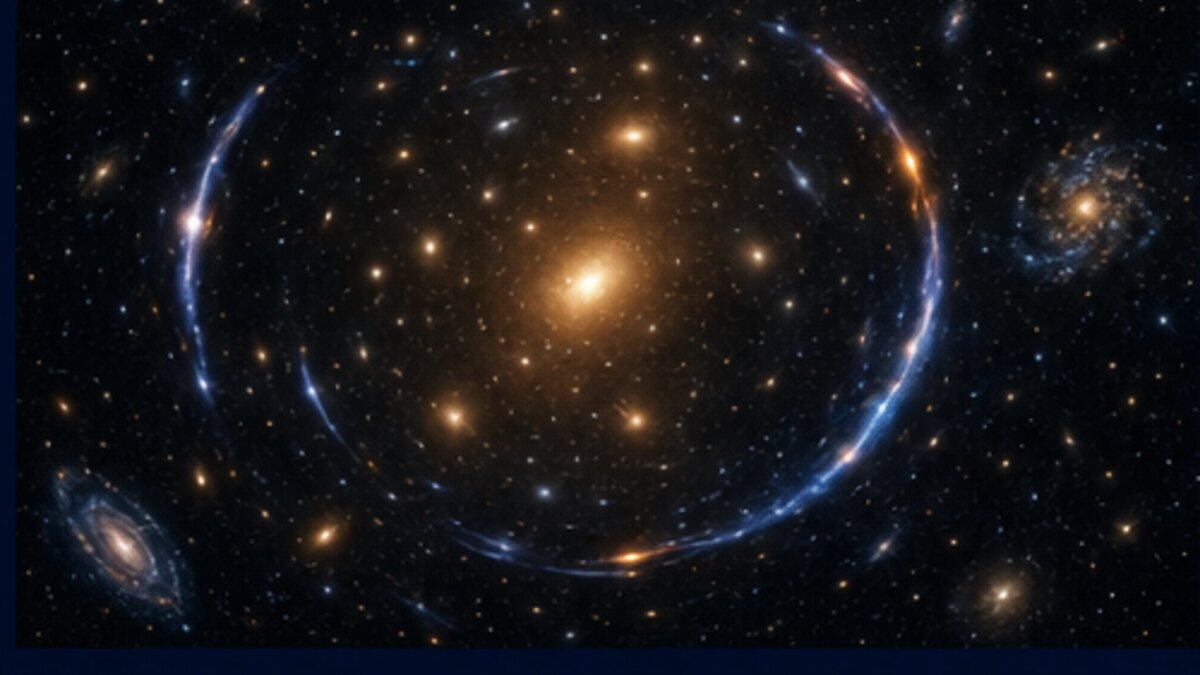

Gravitational lensing

IN PLAIN LANGUAGE

Here is the big picture: Mass turns the universe into a telescope. The main point to remember is this: Lensing measures total gravitating mass.

See the fuller scientific explanation +

Curved the connected fabric of space and time deflects light, producing multiple images, arcs, rings, magnification, and subtle statistical distortions. Lens geometry depends on foreground mass and source alignment.

Strong lensing studies galaxies and clusters, microlensing finds compact objects and planets, and weak lensing maps large-scale dark matter. Time delays between images can constrain cosmic distances.

THE POINTS TO REMEMBER
Lensing measures total gravitating mass
Several regimes probe different scales
Magnification reveals otherwise faint sources

NEXT Now that this piece is in place, we can turn to Black holes and frame dragging.

Gravitational lensing
Lensing exposes invisible mass through the paths of background light.
08CHAPTER

Extreme geometry creates horizons and rotating the connected fabric of space and time.

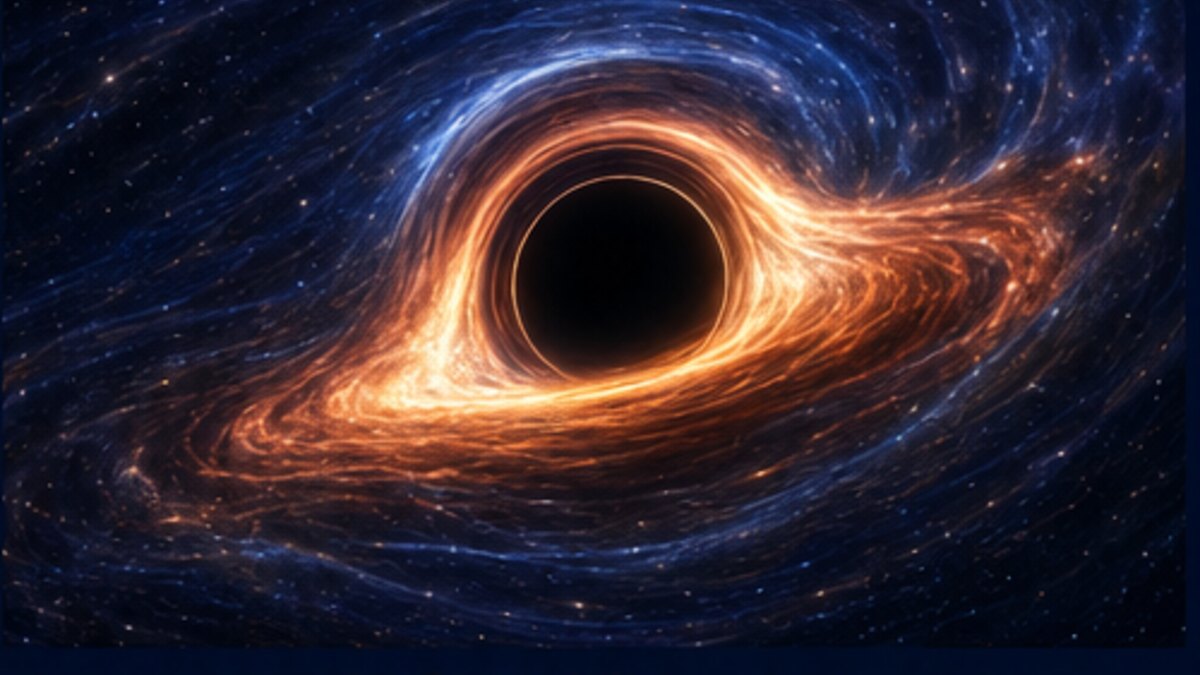

Black holes and frame dragging

IN PLAIN LANGUAGE

Here is the big picture: Extreme geometry creates horizons and rotating the connected fabric of space and time. The main point to remember is this: Horizons are geometric boundaries.

See the fuller scientific explanation +

Schwarzschild geometry describes an ideal nonrotating black hole, while Kerr geometry adds spin. A horizon is a causal boundary from which outward signals cannot reach infinity.

Rotation drags local inertial frames and creates an ergosphere. the gradual buildup of matter (accretion)-disk motion, X-ray spectra, horizon-scale imaging, and gravitational waves test this strong-field regime.

THE POINTS TO REMEMBER
Horizons are geometric boundaries
Spin changes nearby stable orbits
Strong-field observations test Kerr the connected fabric of space and time

NEXT Now that this piece is in place, we can turn to Gravitational waves.

Black holes and frame dragging
Black holes concentrate relativistic effects into observable astronomical systems.
09CHAPTER

Accelerating mass sends curvature outward.

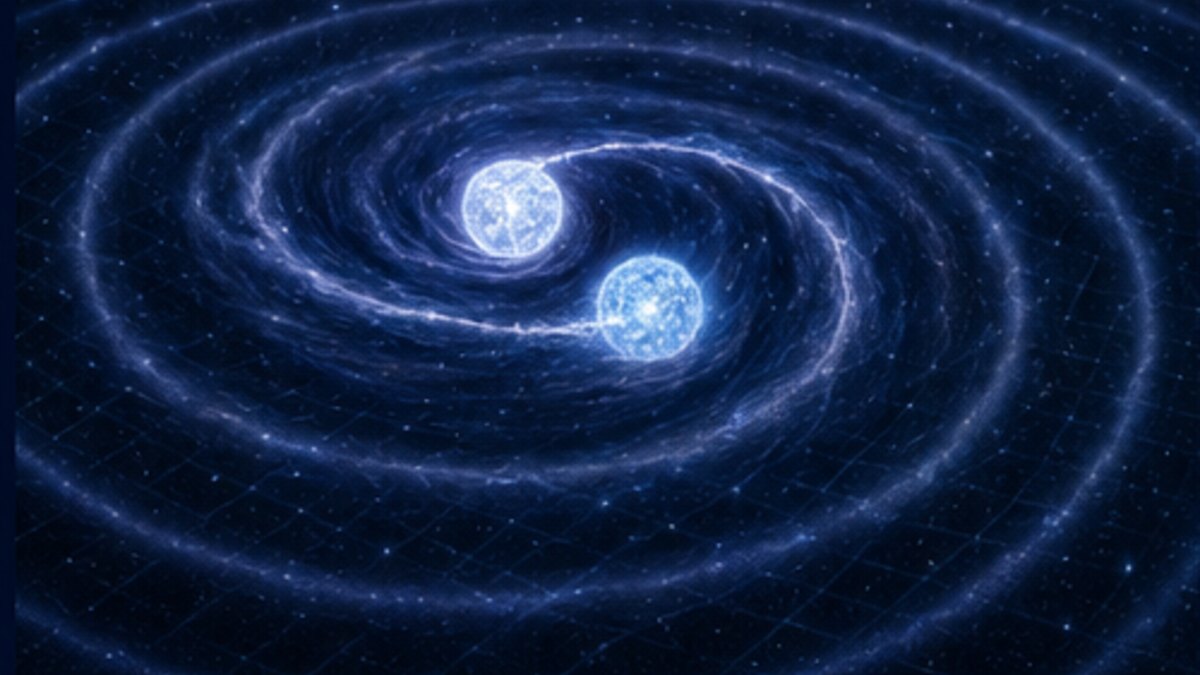

Gravitational waves

IN PLAIN LANGUAGE

Here is the big picture: Accelerating mass sends curvature outward. The main point to remember is this: Quadrupole changes create radiation.

See the fuller scientific explanation +

Changing asymmetric mass distributions generate waves traveling at light speed. Binary compact objects lose orbital energy, spiral inward, merge, and ring down.

Interferometers measure distortions smaller than an atomic nucleus over kilometer baselines. Waveforms reveal masses, spins, distances, and tests of gravity unavailable through light alone.

THE POINTS TO REMEMBER
Quadrupole changes create radiation
Waveforms encode source dynamics
Multi-messenger events combine gravity and light

NEXT Now that this piece is in place, we can turn to Frontiers and limits.

Gravitational waves
Gravitational waves make dynamical the connected fabric of space and time directly measurable.
10CHAPTER

Relativity remains successful and incomplete.

Frontiers and limits

IN PLAIN LANGUAGE

Here is the big picture: Relativity remains successful and incomplete. The main point to remember is this: Singularities indicate theoretical limits.

See the fuller scientific explanation +

General relativity predicts singularities and does not incorporate quantum fields as a full theory of the connected fabric of space and time. The early universe and black-hole interiors expose the need for quantum gravity.

Precision tests also search for violations of equivalence, extra fields, modified propagation, or departures from Kerr geometry. New theories must recover relativity wherever it is already verified.

THE POINTS TO REMEMBER
Singularities indicate theoretical limits
Quantum gravity is unresolved
Alternatives face stringent observational tests
Frontiers and limits
The frontier begins where quantum theory and curved the connected fabric of space and time must coexist.

THE ESSENTIAL THREAD

Three ideas worth keeping.

  1. 01Space and time depend on motion but physical laws remain consistent.
  2. 02Gravity is described as curved the connected fabric of space and time.
  3. 03Relativity is tested continuously in technology and astronomy.
